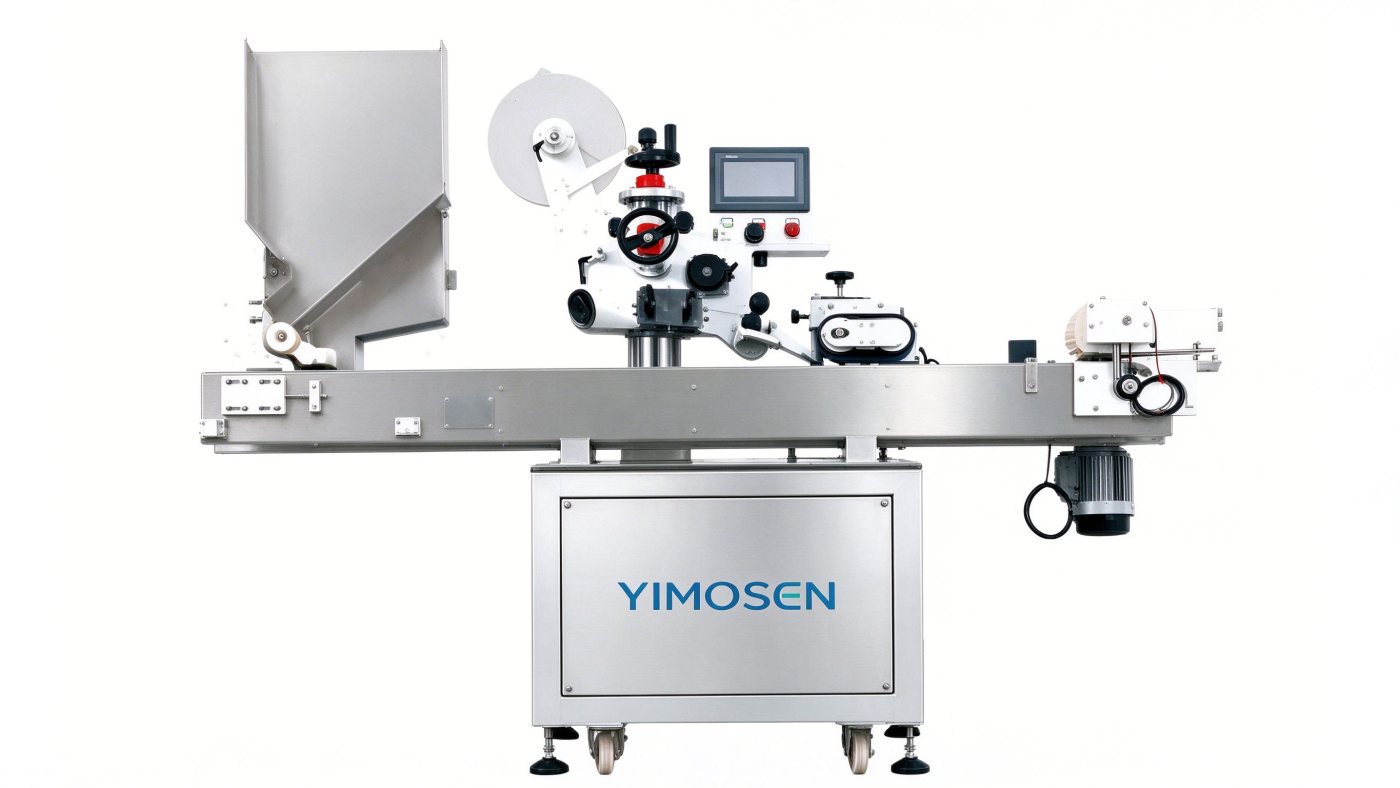

Automatic Labeling & CCD Detection & Tube Loading Machine

Automatic Labeling & CCD Detection & Tube Loading Machine - YIMOSEN
Yield: ≥20,000 tubes/hour Applicable tube specifications: 13×75mm / 13×100mm glass / PE… Labeling accuracy: ±0.5mm (excluding label mater… Dimensions (L×W×H): 3.5m × 0.75m × 1.75m

Product overview

Combines automatic labeling, labeling CCD inspection and automatic tube loading in one machine. Output ≥20,000 tubes/hour, labeling accuracy ±0.5mm, compatible with 13×75mm and 13×100mm glass and PET tubes, and it links directly to a blood collection tube line.

Features and functions

  • Body made of 304 stainless steel and advanced alloy materials for long-term operation in a cleanroom.
  • Universal for 13×75mm / 13×100mm glass and PET tubes, with easy changeover.
  • American LION sensor handles both conventional and transparent labels; transparent labels need no back printing, giving high stability.
  • Detects missing labels and missing easy-tear codes, and rejects defective tubes automatically.
  • Labeling inspection links to the production line for fully automatic flow from labeling to tube loading.

Technical parameters

Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.

Automatic Labeling & CCD Detection & Tube Loading Machine Technical parameters
Yield≥20,000 tubes/hour
Applicable tube specifications13×75mm / 13×100mm glass / PET tubes
Labeling accuracy±0.5mm (excluding label material error)
Dimensions (L×W×H)3.5m × 0.75m × 1.75m
Voltage and power220V / 1.4kW
Weight400kg

Applications and processes

Blood collection tube labeling Transparent label tubes Easy-tear code inspection

Request a quote for the Automatic Labeling & CCD Detection & Tube Loading Machine

Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.

YIMOSEN WeChat QR code
YIMOSEN WhatsApp QR code

Frequently asked questions

What is the capacity of the Automatic Labeling & CCD Detection & Tube Loading Machine and what are its main specifications?

The key figure for the Automatic Labeling & CCD Detection & Tube Loading Machine is Yield: ≥20,000 tubes/hour. Dimensions, power supply, power, air source, noise and operating environment are listed in the technical parameters table on this page.

Which product family does the Automatic Labeling & CCD Detection & Tube Loading Machine belong to, and can it be linked into a line?

It belongs to Blood Collection Tube Line. It can run as a stand-alone machine or be linked with other equipment in process order to form an automated production line.

Who is YIMOSEN?

YIMOSEN is the medical equipment brand of HG Tech Co., Ltd, specialising in vacuum blood collection tube production lines, turnkey blood tube projects and automated equipment for respiratory and tube-type medical consumables.

How do I get a quotation and selection advice for the Automatic Labeling & CCD Detection & Tube Loading Machine?

Send us the product drawing or a sample together with the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration. You can call us on +86 199 2543 0398, email sales1@yimosenmed.com, or reach us on WeChat or WhatsApp using the QR codes on this page.
