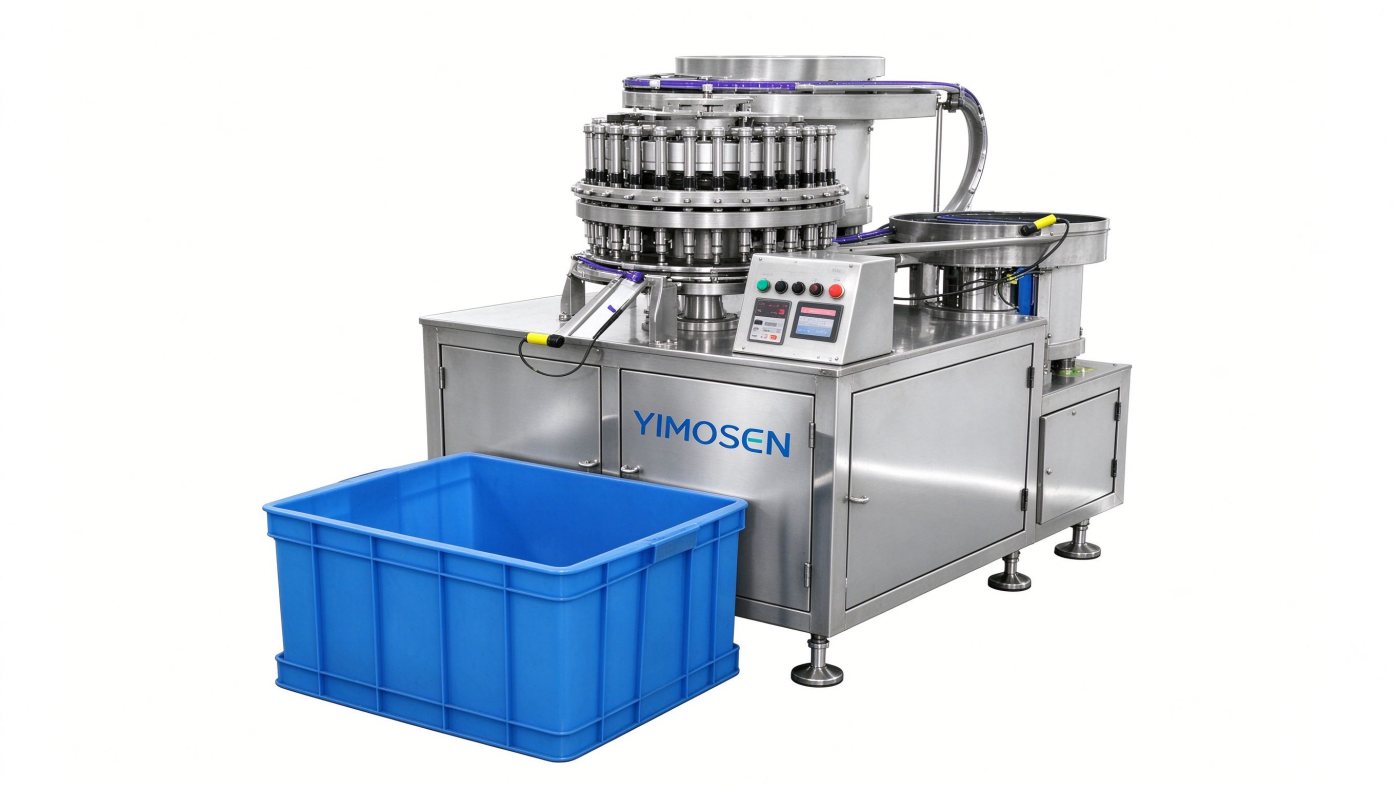

Cap & Rubber Stopper Assembling Machine - Single Channel

Cap & Rubber Stopper Assembling Machine - Single Channel - YIMOSEN
Model: WZD13 / WZD16 / WZD20 Applicable cover type: φ13 / φ16 / φ20 Production capacity: ≥150 pieces/min, up to 220 pi… Qualification rate: ≥99.9%

Product overview

Assembles caps and rubber stoppers for blood collection tubes. Single-channel model: production capacity not less than 150 pieces/minute, up to 220 pieces/minute, qualification rate ≥99.9%, applicable cap types φ13/φ16/φ20, electromagnet vibration groove, total power 2.5kW.

Features and functions

  • Models cover WZD13 / WZD16 / WZD20, applicable cap types φ13 / φ16 / φ20.
  • Production capacity not less than 150 pieces/minute, up to 220 pieces/minute.
  • Qualification rate ≥99.9% with a low defect rate.
  • Electromagnet vibration groove gives stable feeding.
  • Frequency converter adjustable up to 50Hz, so the cycle can match the line.
  • Power supply 220V (380V for the vacuum pump), total power 2.5kW.

Technical parameters

Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.

Cap & Rubber Stopper Assembling Machine - Single Channel Technical parameters
ModelWZD13 / WZD16 / WZD20
Applicable cover typeφ13 / φ16 / φ20
Production capacity≥150 pieces/min, up to 220 pieces/min
Qualification rate≥99.9%
Vibration groove typeElectromagnet
Overall dimensions1.1m × 1.1m × 1.26m
Weight400kg
Number of plugs28 pieces
Frequency converterAdjustable (max 50Hz)
Total power2.5kW
Power supply220V (380V for vacuum pump)

Applications and processes

Cap and stopper assembly 13/16 upper and lower pressure caps Consumable production

Request a quote for the Cap & Rubber Stopper Assembling Machine - Single Channel

Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.

YIMOSEN WeChat QR code
YIMOSEN WhatsApp QR code

Frequently asked questions

What is the capacity of the Cap & Rubber Stopper Assembling Machine - Single Channel and what are its main specifications?

The key figure for the Cap & Rubber Stopper Assembling Machine - Single Channel is Production capacity: ≥150 pieces/min, up to 220 pieces/min. Dimensions, power supply, power, air source, noise and operating environment are listed in the technical parameters table on this page.

Which product family does the Cap & Rubber Stopper Assembling Machine - Single Channel belong to, and can it be linked into a line?

It belongs to Blood Collection Tube Line. It can run as a stand-alone machine or be linked with other equipment in process order to form an automated production line.

Who is YIMOSEN?

YIMOSEN is the medical equipment brand of HG Tech Co., Ltd, specialising in vacuum blood collection tube production lines, turnkey blood tube projects and automated equipment for respiratory and tube-type medical consumables.

How do I get a quotation and selection advice for the Cap & Rubber Stopper Assembling Machine - Single Channel?

Send us the product drawing or a sample together with the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration. You can call us on +86 199 2543 0398, email sales1@yimosenmed.com, or reach us on WeChat or WhatsApp using the QR codes on this page.
